Category: Elektrikal
Showing 661–680 of 791 results
-
-
Read more
– Skun Y isolasi made in Taiwan
– Tipe 3.5-5
– Kabel maksimal 4mm
– Ukuran baut M5
– Terdapat 4 warna (merah, kuning, biru, dan hitam)
– Harap menulis warna yang diinginkan. Jika tidak, akan dikirim random.
– Harga per pack, isi 100 pcs (1 pack = 1 warna) -
Read more
– Skun Y isolasi made in Taiwan
– Tipe 5.55
– Kabel maksimal 6
– Ukuran baut M5
– Terdapat 4 warna (merah, kuning, biru, dan hitam)
– Harap menulis warna yang diinginkan. Jika tidak, akan dikirim random.
– Harga per pack (isi 100 pcs). 1 pak = 1 warna -
-
-
-
Read more
Controller Solar Panel MPPT Tracer 80A Epever, dengan sistem 12/24/36/48V, Cocok untuk PLTS ukuran besar, kualitas terjamin, contoller solar cell, SCC Solar Panel, Controller PJUTS, Controller panel surya, controller tenaga surya, Distributor Controller Solar Panel Epever..
-
Add to cart
Tidak perlu Listrik PLN. Charge energy dari tenaga matahari.
Sudah termasuk tiang mini elbo dan baut untuk installasi.
Fakta Teknis :
* Battery 22000 maH
* Lumen : 2750 – 3250 LUMEN
* Run Time : > 19 Jam Full power Mode (12 Watt); >40 Jam Saving Power Mode (5 Watt)
* High Efficiency Polycrystalline silicon 40W
* Auto Turn ON at night and OFF in daytime
* Material : Die Casting Aluminum + Tempered Glass
* Dimensi : 420 X 200 X 30 (MM)
* Gross Weight : 2.1 Kilogram
* IP65
* CRI > 75
* 5,700 – 6,500K CCT (COOL WHITE)
* Power : 24 Watt
* Sensor Gerak Jangkauan 5-6 meter
* Chips : Epistar SMD 2835 48 LEDS -
Add to cart
Solar LED PJU All-in-one 8 Watt
Tidak perlu Listrik PLN. Charge energy dari tenaga matahari. Sudah termasuk baut untuk installasi.
Fakta Teknis :
* Lumen : 500 – 750 LUMEN
* Baterai 7000 mAH Lithium Battery
* Run Time : > 19 Jam Full power Mode (12 Watt); >40 Jam Saving Power Mode (5 Watt)
* High Efficiency Monocrystalline silicon 15W
* Auto Turn ON at night and OFF in daytime
* Material : Die Casting Aluminum + Tempered Glass
* Dimensi : 110 X 65 X 40 (MM)
* Gross Weight : 1 Kilogram
* IP65
* CRI > 75
* 5,700 6,500K CCT (COOL WHITE)
* Power : 8 Watt
* Sensor Gerak Jangkauan 5-6 meter
* Chips : Epistar SMD2835 24 LEDS -
-
Add to cartDigunakan untuk merubah tegangan 220V AC menjadi 12V DC. Beberapa contoh barang yang menggunakan 12V DC : Lampu LED, LED Module, Strip LED, CCTV, Lampu Halogen dan sebagainya
FULL LOAD (100% Murni penggunaan Watt)
Fakta parameters :
1. Input Voltage : 170 – 250 V AC
2. Built – in EMI Filter
3. 100% Load test
4. Output Voltage accurate and stable (output over voltage, over current and short circuit protection)
5. Output low ripple and noise
6. MTBF : 50,000 Hours
7. Input Frequency : 50/60 Hz
8. Input Surge : Cold start /230 V AC
9. Dimension : 85 mm (Length) x 58 mm (Width) x 38 mm (Height)
10. Cooling method : Natural Cooling air convection
11. Net weight : 500 gram
12. Ripple Noise : 100 mV
13. Efficiency : 84%
14. 1 Year Warranty
15. Output : DC 12V / 10A
OUTPUT SPECIFICATION :
Adjustable Voltage : +- 10%
Start up time : 1S (input 230V, Io = 100%)
Keep time : 20mS (input 230V, Io=100%)
Voltage regulation : (Full load) < 0.5%
PROTECTION FUNCTION :
Overload protection : 105%- 150% rated power, automatic recovery
Over-Voltage protection : 105% – 150% of the rated voltage
INSULATION INTENSITY :
Input – output : 1500 VAC/1 min
Input – ground : 1500 VAC/1 min
Input – ground : 500 VAC/1 min
SAFETY STANDARDS :
According with GB4943, UL60950-1, EN60950-1 Standards
EMC STANDARDS :
According with GB9254, EN55022 Class A, EN61347-2-13:2008 Standards
ENVIRONMENTAL :
Working Temperature : -20 ~ 60 C / 20% ~ 90% RH (no frost)
Storage Temperature : 40 ~ 85 C / 10% ~ 95% (no frost)
Height above sea level < 2000 Meters -
Add to cart
Digunakan untuk merubah tegangan 220V AC menjadi 12V DC. Beberapa contoh barang yang menggunakan 12V DC : Lampu LED, LED Module, Strip LED, CCTV, Lampu Halogen dan sebagainya
FULL LOAD (100% Murni penggunaan Watt)
Fakta parameters :
1. Input Voltage : 170 – 250 V AC
2. Built – in EMI Filter
3. 100% Load test
4. Output Voltage accurate and stable (output over voltage, over current and short circuit protection)
5. Output low ripple and noise
6. MTBF : 50,000 Hours
7. Input Frequency : 50/60 Hz
8. Input Surge : Cold start /230 V AC
9. Dimension : 199 mm (Length) x 98 mm (Width) x 42 mm (Height)
10. Cooling method : Natural Cooling air convection
11. Net weight : 700 gram
12. Ripple Noise : 100 mV
13. Efficiency : 84%
14. 1 Year Warranty
15. Output : DC 12V / 20A
OUTPUT SPECIFICATION :
Adjustable Voltage : +- 10%
Start up time : 1S (input 230V, Io = 100%)
Keep time : 20mS (input 230V, Io=100%)
Voltage regulation : (Full load) < 0.5%
PROTECTION FUNCTION :
Overload protection : 105%- 150% rated power, automatic recovery
Over-Voltage protection : 105% – 150% of the rated voltage
INSULATION INTENSITY :
Input – output : 1500 VAC/1 min
Input – ground : 1500 VAC/1 min
Input – ground : 500 VAC/1 min
SAFETY STANDARDS :
According with GB4943, UL60950-1, EN60950-1 Standards
EMC STANDARDS :
According with GB9254, EN55022 Class A, EN61347-2-13:2008 Standards
ENVIRONMENTAL :
Working Temperature : -20 ~ 60 C / 20% ~ 90% RH (no frost)
Storage Temperature : 40 ~ 85 C / 10% ~ 95% (no frost)
Height above sea level < 2000 Meters -
Add to cart

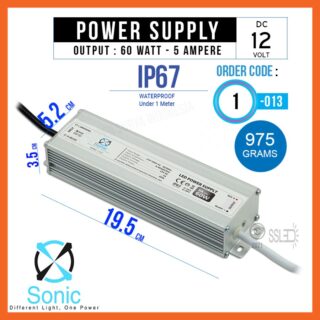

Digunakan untuk merubah tegangan 220V AC menjadi 12V DC. Beberapa contoh barang yang menggunakan 12V DC : Lampu LED, LED Module, Strip LED, CCTV, Lampu Halogen dan sebagainya
FULL LOAD (100% Murni penggunaan Watt)
Fakta parameters :
1. Input Voltage : 170 – 265 V AC
2. Built – in EMI Filter
3. 100% Full-Load test, 100% burn-in tested
4. Output Voltage accurate and stable (output over voltage, over current and short circuit protection)
5. Output low ripple and noise
6. MTBF : 50,000 Hours
7. Input Frequency : 50/60 Hz
8. Input Surge : Cold start /230 V AC / 1A. Max
9. Inrush Current : 40A
10. Dimension : 110 mm (Length) x 78 mm (Width) x 35 mm (Height)
11. Cooling method : Natural Cooling air convection
12. Net weight : 350 gram
13. Ripple Noise : 100 mV
14. Efficiency : 83%
15. IP55 (Tahan terhadap Hujan). Harus diinstallasi dengan rapi.
16. 1 Year Warranty
17. Output : DC 12V / 5A / 60 Watt (MURNI)
OUTPUT SPECIFICATION :
Adjustable Voltage : +- 10%
Start up time : 1S (input 230V, Io = 100%)
Keep time : 20mS (input 230V, Io=100%)
Voltage regulation : (Full load) < 0.5%
PROTECTION FUNCTION :
Active when loading is over 110%
Output Voltage drops if overloaded
Short circuit : Hiccup mode. Recovers automatically after fault condition is removed
Overload protection : 105%- 120% rated power, automatic recovery
Over-Voltage protection : 105% – 120% of the rated voltage
SAFETY STANDARDS :
According with EN 61347-2-13
ENVIRONMENTAL :
Working Temperature : -20 ~ 50 C / 20% ~ 90% RH (no frost)
Storage Temperature : -40 ~ 80 C / 10% ~ 95% (no frost)
Height above sea level < 2000 Meters
PERINGATAN :
1. Agar voltage output tidak turun, diusahakan pemasangan Power Supply dekat dengan sumber tenaga (listrik PLN).
2. Apabila harus jauh dari sumber tenaga, -
Add to cart
Digunakan untuk merubah tegangan 220V AC menjadi 12V DC. Beberapa contoh barang yang menggunakan 12V DC : Lampu LED, LED Module, Strip LED, CCTV, Lampu Halogen dan sebagainya
FULL LOAD (100% Murni penggunaan Watt)
Fakta parameters :
Input Voltage : 170 265 V AC
Built in EMI Filter
100% Full-Load test, 100% burn-in tested
Output Voltage accurate and stable (output over voltage, over current and short circuit protection)
Output low ripple and noise
MTBF : 50,000 Hours
Input Frequency : 50/60 Hz
Input Surge : Cold start /230 V AC / 1.6A. Max
Inrush Current : 40A
Dimension : 219 mm (Length) x 103 mm (Width) x 48 mm (Height)
Cooling method : Natural Cooling air convection
Net weight : 700 gram
Ripple Noise : 100 mV
Efficiency : 83%
IP55 (Tahan terhadap Hujan). Harus diinstallasi dengan rapi.
1 Year Warranty
Output : DC 12V / 10A / 120 Watt (MURNI)
OUTPUT SPECIFICATION :
Adjustable Voltage : +- 10%
Start up time : 1S (input 230V, Io = 100%)
Keep time : 20mS (input 230V, Io=100%)
Voltage regulation : (Full load) < 0.5%
PROTECTION FUNCTION :
Cut-off Mode, Output Shuts down if over-loaded
Recovers automatically after fault condition is removed
Overload protection : 105%- 150% rated power, automatic recovery
Over-Voltage protection : 105% 150% of the rated voltage
SAFETY STANDARDS :
According with EN 61347-2-13
ENVIRONMENTAL :
Working Temperature : -20 ~ 60 C / 20% ~ 90% RH (no frost)
Storage Temperature : 40 ~ 85 C / 10% ~ 95% (no frost)
Height above sea level < 2000 Meters
PERINGATAN :
Agar voltage output tidak turun, diusahakan pemasangan Power Supply dekat dengan sumber tenaga (listrik PLN).
Apabila harus jauh dari sumber tenaga, maka gunakan kabel yang lebih tebal dan penggunaan jangan 100% tenaga (Recommended 70% -
Add to cart
Digunakan untuk merubah tegangan 220V AC menjadi 12V DC. Beberapa contoh barang yang menggunakan 12V DC : Lampu LED, LED Module, Strip LED, CCTV, Lampu Halogen dan sebagainya
FULL LOAD (100% Murni penggunaan Watt)
Fakta parameters :
1. Input Voltage : 170 – 265 V AC
2. Built – in EMI Filter
3. 100% Full-Load test, 100% burn-in tested
4. Output Voltage accurate and stable (output over voltage, over current and short circuit protection)
5. Output low ripple and noise
6. MTBF : 50,000 Hours
7. Input Frequency : 50/60 Hz
8. Input Surge : Cold start /230 V AC / 1.6A. Max
9. Inrush Current : 40A
10. Dimension : 219 mm (Length) x 103 mm (Width) x 48 mm (Height)
11. Cooling method : Natural Cooling air convection
12. Net weight : 700 gram
13. Ripple Noise : 100 mV
14. Efficiency : 83%
15. IP55 (Tahan terhadap Hujan). Harus diinstallasi dengan rapi.
16. 1 Year Warranty
17. Output : DC 12V / 16.6A / 200 Watt (MURNI)
OUTPUT SPECIFICATION :
Adjustable Voltage : +- 10%
Start up time : 1S (input 230V, Io = 100%)
Keep time : 20mS (input 230V, Io=100%)
Voltage regulation : (Full load) < 0.5%
PROTECTION FUNCTION :
Cut-off Mode, Output Shuts down if over-loaded
Recovers automatically after fault condition is removed
Overload protection : 105%- 150% rated power, automatic recovery
Over-Voltage protection : 105% – 150% of the rated voltage
SAFETY STANDARDS :
According with EN 61347-2-13
PERINGATAN :
1. Agar voltage output tidak turun, diusahakan pemasangan Power Supply dekat dengan sumber tenaga (listrik PLN).
2. Apabila harus jauh dari sumber tenaga, maka gunakan kabel yang lebih tebal dan penggunaan jangan
3. STOCK sudah tertera. Untuk mempermudah transaksi, mohon untuk tidak tanya lagi.
Terima kasih -
Add to cart
Digunakan untuk merubah tegangan 220V AC menjadi 12V DC. Beberapa contoh barang yang menggunakan 12V DC : Lampu LED, LED Module, Strip LED, CCTV, Lampu Halogen dan sebagainya
FULL LOAD (100% Murni penggunaan Watt)
Fakta parameters :
1. Input Voltage : 100 – 265 V AC
2. Built – in EMI Filter
3. 100% Full-Load test, 100% burn-in tested
4. Output Voltage accurate and stable (output over voltage, over current and short circuit protection)
5. Output low ripple and noise
6. MTBF : 50,000 Hours
7. Input Frequency : 50/60 Hz
8. Input Surge : Cold start /230 V AC / 3.2A. Max
9. Inrush Current : 40A
10. Dimension : 231 mm (Length) x 153 mm (Width) x 65 mm (Height)
11. Cooling method : Natural Cooling air convection
12. Net weight : 850 gram
13. Ripple Noise : 100 mV
14. Efficiency : 83%
15. IP55 (Tahan terhadap Hujan). Harus diinstallasi dengan rapi.
16. 1 Year Warranty
17. Output : DC 12V / 33.3A / 400 Watt (MURNI)
OUTPUT SPECIFICATION :
Adjustable Voltage : +- 10%
Start up time : 1S (input 230V, Io = 100%)
Keep time : 20mS (input 230V, Io=100%)
Voltage regulation : (Full load) < 0.5%
PROTECTION FUNCTION :
Cut-off Mode, Output Shuts down if over-loaded
Recovers automatically after fault condition is removed
Overload protection : 105%- 150% rated power, automatic recovery
Over-Voltage protection : 105% – 150% of the rated voltage
SAFETY STANDARDS :
According with EN 61347-2-13
PERINGATAN :
1. Agar voltage output tidak turun, diusahakan pemasangan Power Supply dekat dengan sumber tenaga (listrik PLN).
2. Apabila harus jauh dari sumber tenaga, maka gunakan kabel yang lebih tebal dan penggunaan jangan 100% tenaga (Recommended 70%) -
Add to cart
Digunakan untuk merubah tegangan 220V AC menjadi 12V DC. Beberapa contoh barang yang menggunakan 12V DC : Lampu LED, LED Module, Strip LED, CCTV, Lampu Halogen dan sebagainya
FULL LOAD (100% Murni penggunaan Watt)
Fakta parameters :
1. Input Voltage : 170 – 250 V AC
2. Input Current : 230V: 0.48A Max.
3. 100% Load test
4. Output Voltage accurate and stable (output over voltage, over current and short circuit protection)
5. Output low ripple and noise
6. MTBF : 50,000 Hours
7. Input Frequency : 50/60 Hz
8. Input Surge : Cold start /230 V AC
9. Dimension : 242 mm (Length) x 71 mm (Width) x 45 mm (Height)
10. Cooling method : Natural Cooling air convection
11. Net weight : 1300 gram
12. Ripple Noise : 100 mV
13. Efficiency : 85%
14. 1 Year Warranty
15. Output : DC 12V / 12.5A (MURNI)
16. Rated Power : 150 Watt (MURNI)
OUTPUT SPECIFICATION :
Adjustable Voltage : +- 10%
Start up time : 1S (input 230V, Io = 100%)
Keep time : 20mS (input 230V, Io=100%)
Voltage regulation : (Full load) < 0.5%
PROTECTION FUNCTION :
Overload protection : Active, 110%- 120% rated power, automatic recovery, Output voltage drops if overloaded
Over-Voltage protection : 105% – 150% of the rated voltage
Short Circuit : Hiccup mode, recovers automatically after fault condition is removed
SAFETY STANDARDS :
According with EN 61347-2-13 Standards
Withstand voltage : I/P-O/P: 3750 VAC/1min/ 5mA
EMC STANDARDS :
According with GB9254, EN55022 Class A, EN61347-2-13:2008 Standards
ENVIRONMENTAL :
Working Temperature : -20 ~ 60 C / 20% ~ 90% RH (no frost)
Storage Temperature : 40 ~ 85 C / 10% ~ 95% (no frost)
Height above sea level < 2000 Meters -
Add to cart
Digunakan untuk merubah tegangan 220V AC menjadi 12V DC. Beberapa contoh barang yang menggunakan 12V DC : Lampu LED, LED Module, Strip LED, CCTV, Lampu Halogen dan sebagainya
FULL LOAD (100% Murni penggunaan Watt)
Fakta parameters :
1. Input Voltage : 170 – 250 V AC
2. Input Current : 230V: 0.36A Max.
3. 100% Load test
4. Output Voltage accurate and stable (output over voltage, over current and short circuit protection)
5. Output low ripple and noise
6. MTBF : 50,000 Hours
7. Input Frequency : 50/60 Hz
8. Input Surge : Cold start /230 V AC
9. Dimension : 232 mm (Length) x 37 mm (Width) x 21 mm (Height)
10. Cooling method : Natural Cooling air convection
11. Net weight : 450 gram
12. Ripple Noise : 100 mV
13. Efficiency : 85%
14. 1 Year Warranty
15. IP67
16. Output : DC 12V / 3.33A (MURNI)
17. Rated Power : 40 Watt (MURNI)
OUTPUT SPECIFICATION :
Adjustable Voltage : +- 10%
Start up time : <1S (input 230V, Io = 100%)
Keep time : >20mS (input 230V, Io=100%)
Voltage regulation : (Full load) < 0.5%
PROTECTION FUNCTION :
Overload protection : Active, 110%- 120% rated power, automatic recovery, Output voltage drops if overloaded
Over-Voltage protection : 105% – 150% of the rated voltage
Short Circuit : Hiccup mode, recovers automatically after fault condition is removed
SAFETY STANDARDS :
According with EN 61347-2-13 Standards
Withstand voltage : I/P-O/P: 3750 VAC/1min/<5mA
EMC STANDARDS :
According with GB9254, EN55022 Class A, EN61347-2-13:2008 Standards
ENVIRONMENTAL :
Working Temperature : -20 ~ 60 C / 20% ~ 90% RH (no frost)
Storage Temperature : 40 ~ 85 C / 10% ~ 95% (no frost)
Height above sea level < 2000 Meters -
Add to cart

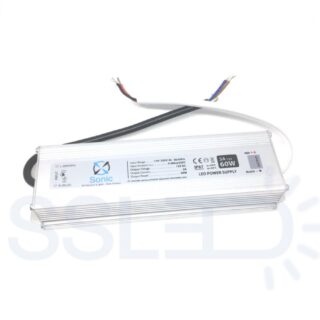

Digunakan untuk merubah tegangan 220V AC menjadi 12V DC. Beberapa contoh barang yang menggunakan 12V DC : Lampu LED, LED Module, Strip LED, CCTV, Lampu Halogen dan sebagainya
FULL LOAD (100% Murni penggunaan Watt)
Fakta parameters :
1. Input Voltage : 170 – 250 V AC
2. Input Current : 230V: 0.48A Max.
3. 100% Load test
4. Output Voltage accurate and stable (output over voltage, over current and short circuit protection)
5. Output low ripple and noise
6. MTBF : 50,000 Hours
7. Input Frequency : 50/60 Hz
8. Input Surge : Cold start /230 V AC
9. Dimension : 195 mm (Length) x 52 mm (Width) x 35 mm (Height)
10. Cooling method : Natural Cooling air convection
11. Net weight : 800 gram
12. Ripple Noise : 100 mV
13. Efficiency : 85%
14. 1 Year Warranty
15. Output : DC 12V / 5A (MURNI)
16. Rated Power : 60 Watt (MURNI)
OUTPUT SPECIFICATION :
Adjustable Voltage : +- 10%
Start up time : 1S (input 230V, Io = 100%)
Keep time : 20mS (input 230V, Io=100%)
Voltage regulation : (Full load) < 0.5%
PROTECTION FUNCTION :
Overload protection : Active, 110%- 120% rated power, automatic recovery, Output voltage drops if overloaded
Over-Voltage protection : 105% – 150% of the rated voltage
Short Circuit : Hiccup mode, recovers automatically after fault condition is removed
SAFETY STANDARDS :
According with EN 61347-2-13 Standards
Withstand voltage : I/P-O/P: 3750 VAC/1min/ 5mA
EMC STANDARDS :
According with GB9254, EN55022 Class A, EN61347-2-13:2008 Standards
ENVIRONMENTAL :
Working Temperature : -20 ~ 60 C / 20% ~ 90% RH (no frost)
Storage Temperature : 40 ~ 85 C / 10% ~ 95% (no frost)
Height above sea level < 2000 Meters -
Add to cart

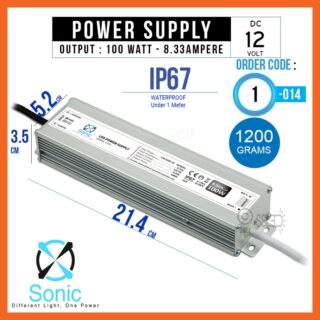

Digunakan untuk merubah tegangan 220V AC menjadi 12V DC. Beberapa contoh barang yang menggunakan 12V DC : Lampu LED, LED Module, Strip LED, CCTV, Lampu Halogen dan sebagainya
FULL LOAD (100% Murni penggunaan Watt)
Fakta parameters :
1. Input Voltage : 170 – 250 V AC
2. Input Current : 230V: 0.36A Max.
3. 100% Load test
4. Output Voltage accurate and stable (output over voltage, over current and short circuit protection)
5. Output low ripple and noise
6. MTBF : 50,000 Hours
7. Input Frequency : 50/60 Hz
8. Input Surge : Cold start /230 V AC
9. Dimension : 204 mm (Length) x 52 mm (Width) x 35 mm (Height)
10. Cooling method : Natural Cooling air convection
11. Net weight : 1000 gram
12. Ripple Noise : 100 mV
13. Efficiency : 85%
14. 1 Year Warranty
15. IP67
16. Output : DC 12V / 8.33A (MURNI)
17. Rated Power : 100 Watt (MURNI)
OUTPUT SPECIFICATION :
Adjustable Voltage : +- 10%
Start up time : <1S (input 230V, Io = 100%)
Keep time : >20mS (input 230V, Io=100%)
Voltage regulation : (Full load) < 0.5%
PROTECTION FUNCTION :
Overload protection : Active, 110%- 120% rated power, automatic recovery, Output voltage drops if overloaded
Over-Voltage protection : 105% – 150% of the rated voltage
Short Circuit : Hiccup mode, recovers automatically after fault condition is removed
SAFETY STANDARDS :
According with EN 61347-2-13 Standards
Withstand voltage : I/P-O/P: 3750 VAC/1min/<5mA
EMC STANDARDS :
According with GB9254, EN55022 Class A, EN61347-2-13:2008 Standards
ENVIRONMENTAL :
Working Temperature : -20 ~ 60 C / 20% ~ 90% RH (no frost)
Storage Temperature : 40 ~ 85 C / 10% ~ 95% (no frost)
Height above sea level < 2000 Meters
