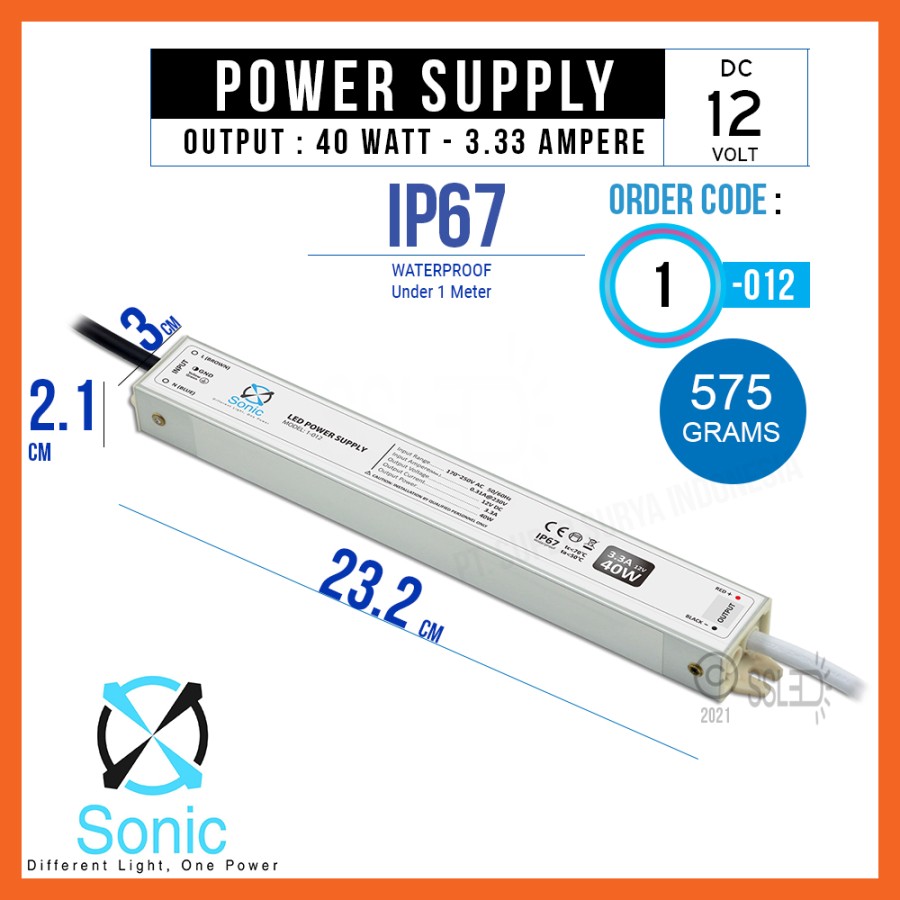

Sonic Power Supply Waterproof DC12V 3.33A 40 Watt

Rp225,000

Digunakan untuk merubah tegangan 220V AC menjadi 12V DC. Beberapa contoh barang yang menggunakan 12V DC : Lampu LED, LED Module, Strip LED, CCTV, Lampu Halogen dan sebagainya

FULL LOAD (100% Murni penggunaan Watt)

Fakta parameters :

1. Input Voltage : 170 – 250 V AC
2. Input Current : 230V: 0.36A Max.
3. 100% Load test
4. Output Voltage accurate and stable (output over voltage, over current and short circuit protection)
5. Output low ripple and noise
6. MTBF : 50,000 Hours
7. Input Frequency : 50/60 Hz
8. Input Surge : Cold start /230 V AC
9. Dimension : 232 mm (Length) x 37 mm (Width) x 21 mm (Height)
10. Cooling method : Natural Cooling air convection
11. Net weight : 450 gram
12. Ripple Noise : 100 mV
13. Efficiency : 85%
14. 1 Year Warranty
15. IP67
16. Output : DC 12V / 3.33A (MURNI)
17. Rated Power : 40 Watt (MURNI)

OUTPUT SPECIFICATION :
Adjustable Voltage : +- 10%
Start up time : <1S (input 230V, Io = 100%)
Keep time : >20mS (input 230V, Io=100%)
Voltage regulation : (Full load) < 0.5%
PROTECTION FUNCTION :
Overload protection : Active, 110%- 120% rated power, automatic recovery, Output voltage drops if overloaded
Over-Voltage protection : 105% – 150% of the rated voltage
Short Circuit : Hiccup mode, recovers automatically after fault condition is removed
SAFETY STANDARDS :
According with EN 61347-2-13 Standards
Withstand voltage : I/P-O/P: 3750 VAC/1min/<5mA
EMC STANDARDS :
According with GB9254, EN55022 Class A, EN61347-2-13:2008 Standards
ENVIRONMENTAL :
Working Temperature : -20 ~ 60 C / 20% ~ 90% RH (no frost)
Storage Temperature : 40 ~ 85 C / 10% ~ 95% (no frost)
Height above sea level < 2000 Meters



Digunakan untuk merubah tegangan 220V AC menjadi 12V DC. Beberapa contoh barang yang menggunakan 12V DC : Lampu LED, LED Module, Strip LED, CCTV, Lampu Halogen dan sebagainya

FULL LOAD (100% Murni penggunaan Watt)

Fakta parameters :

1. Input Voltage : 170 – 250 V AC
2. Input Current : 230V: 0.36A Max.
3. 100% Load test
4. Output Voltage accurate and stable (output over voltage, over current and short circuit protection)
5. Output low ripple and noise
6. MTBF : 50,000 Hours
7. Input Frequency : 50/60 Hz
8. Input Surge : Cold start /230 V AC
9. Dimension : 232 mm (Length) x 37 mm (Width) x 21 mm (Height)
10. Cooling method : Natural Cooling air convection
11. Net weight : 450 gram
12. Ripple Noise : 100 mV
13. Efficiency : 85%
14. 1 Year Warranty
15. IP67
16. Output : DC 12V / 3.33A (MURNI)
17. Rated Power : 40 Watt (MURNI)

OUTPUT SPECIFICATION :
Adjustable Voltage : +- 10%
Start up time : <1S (input 230V, Io = 100%)
Keep time : >20mS (input 230V, Io=100%)
Voltage regulation : (Full load) < 0.5%
PROTECTION FUNCTION :
Overload protection : Active, 110%- 120% rated power, automatic recovery, Output voltage drops if overloaded
Over-Voltage protection : 105% – 150% of the rated voltage
Short Circuit : Hiccup mode, recovers automatically after fault condition is removed
SAFETY STANDARDS :
According with EN 61347-2-13 Standards
Withstand voltage : I/P-O/P: 3750 VAC/1min/<5mA
EMC STANDARDS :
According with GB9254, EN55022 Class A, EN61347-2-13:2008 Standards
ENVIRONMENTAL :
Working Temperature : -20 ~ 60 C / 20% ~ 90% RH (no frost)
Storage Temperature : 40 ~ 85 C / 10% ~ 95% (no frost)
Height above sea level < 2000 Meters



Berat 575 kg
