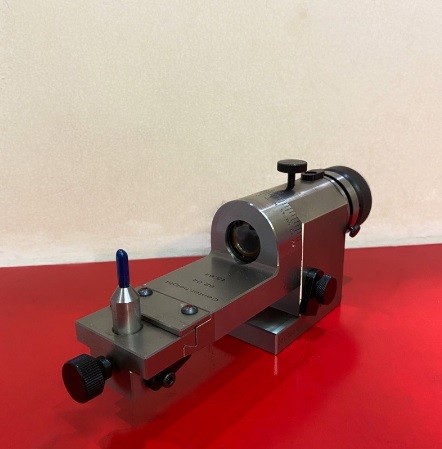

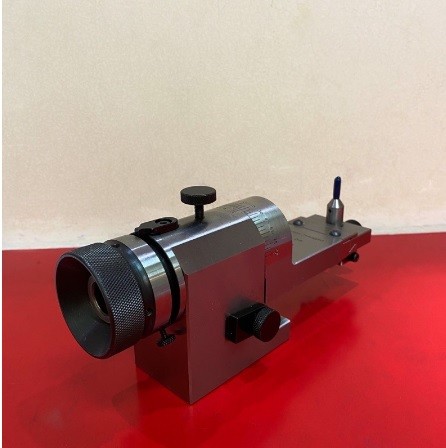

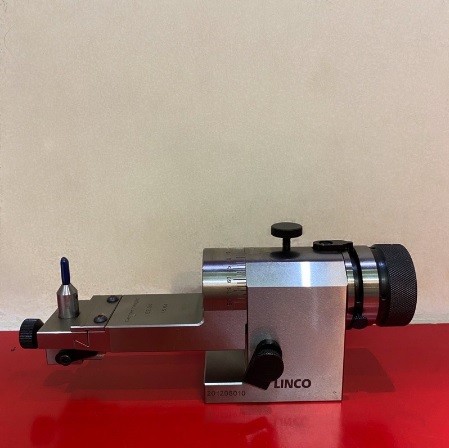

Visual Radius Angle Dresser

Merk : LINCO (Taiwan)

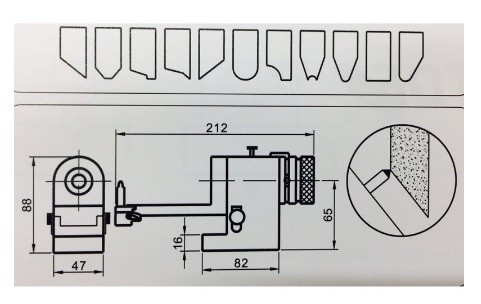

Main Parameters :
– Center Height = 65mm
– Max. Wheel Diameter = Ø 205mm
– Max. Convex Radius = R13mm
– Max. Concave Radius = R25.4mm
– Dressing Angle = 95° -0° -95°
– Tangentlal Travel = 22.5mm

The optic-transparency universal grinding wheel trimmer is mainly applied to trim the combination of angle and arc of grinding wheels equipped to plane grinder and universal tool grinder; by means of 4X optic lens, operator can observe the contacting status of cutting pen tip and grinding wheel surface; and by using blocking gauge and LINCO magnetic sine gauge, the trimming precision is extraordinarily outstanding.
