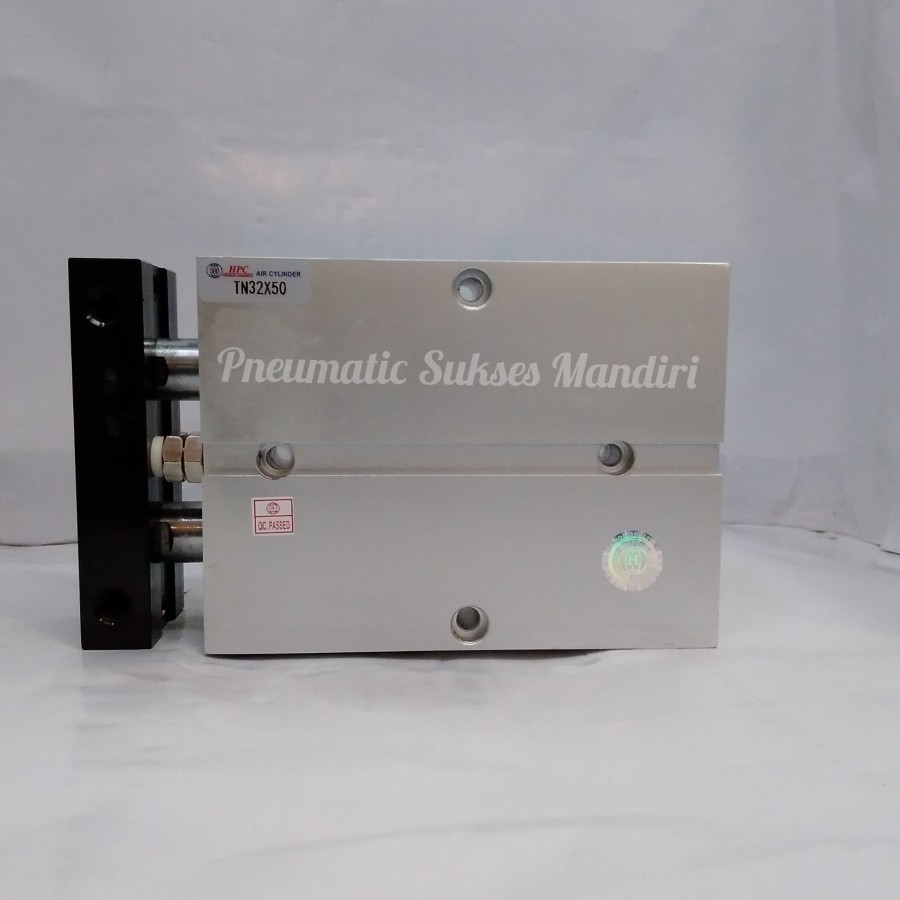

TN32x50 Twin Rod Cylinder Pneumatic HPC

TN 32×50 Twin Rod Cylinder Pneumatic HPC
———————————————————————————————————-
• Acting Type : Double Acting
• Working Medium : Air ( Udara )
• Working Pressure : 1 ~ 10 Bar
• Speed Range : 30 ~ 500mm/s
———————————————————————————————————-
Dimensions Size :
• Diameter Cylinder : 32 mm
• Panjang Stroke : 50 mm
• Port : G M5
• Magnetic Piston : YES
• Sensor Device : YES

Material :
Body : Aluminium Alloy
Slide Bearing : Brass
Ros Cover : Aluminium Alloy
Head Cover : Carbon Steel
Rod Packing : NBR
Cover Ring : NBR
Snap Ring : Spring Steel
Piston Rod : Medium Carbon Steel
Piston : Aluminium Alloy
Magnetic Ring : Magnet Material
Magnet Holder : Stainless Steel
