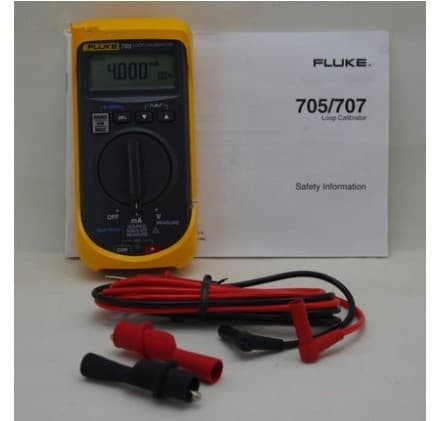

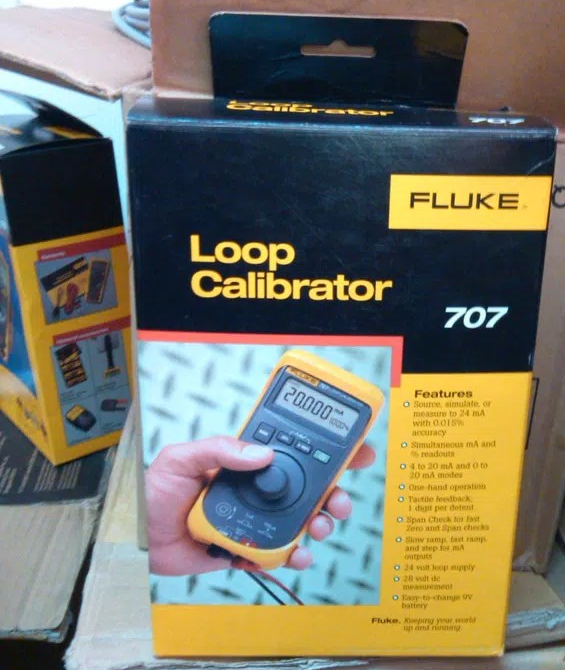

The Fluke 707 Loop Calibrator made in USA

Rp15,000,000

The Fluke 707 Loop Calibrator is a high performance solution for
calibration, repair and maintenance of current loops. The new ” Quick
Click ” knob making it extremely fast and easy to use

One
handed user interface with ” Quick Click ” detented knob

mA
sourcing, simulation and measurement

0.015%
accuracy and 0.001 mA resolution

Simultaneous
mA and % of span display

Selectable
step or ramp outputs

24 V
Loop supply with mA measure, including 250 HART resistor

0-28
VDC measurement to check Loop Voltage

Easy
battery exchange without opening the case

Compact
case with separate protective holster

The
fast, one-handed tool for loop checks. Just click to calibrate.

This
feature-rich solution combines the best features push-button and knob-base loop
calibrator and offers:



Large
display and simple, quick-click interface for easy one-handed operation.

Simultaneous
mA and % readout for quick, easy interpretation of readings.

mA
accuracy of 0.015% , superior to other loop calibrators in this price range.

1 A
resolution for mA source, simulate and measure.

Push
button 25% steps for fast, easy linearity checks.

0-100%
span check for fast confirmation of zero and span.

Selectable
slow ramp, fast ramp, and step ramp to provide smooth outputs for valve slewing
and loop functional tests.

24
volt internal loop supply, so you can power and read a transmitter at the same
time without carrying a DMM.

Measures
V dc to 28 V.

Single
9V battery that is easily changed without braking calibration seal

0 –
20 mA or 4 – 20 mA default start up modes.

Innovative
output adjustment dial with 1 A and 100 resolution.

HART
mode connects 250 resistor in series with 24 V loop for compatibility with HART
communicators.

Berat 1 kg
