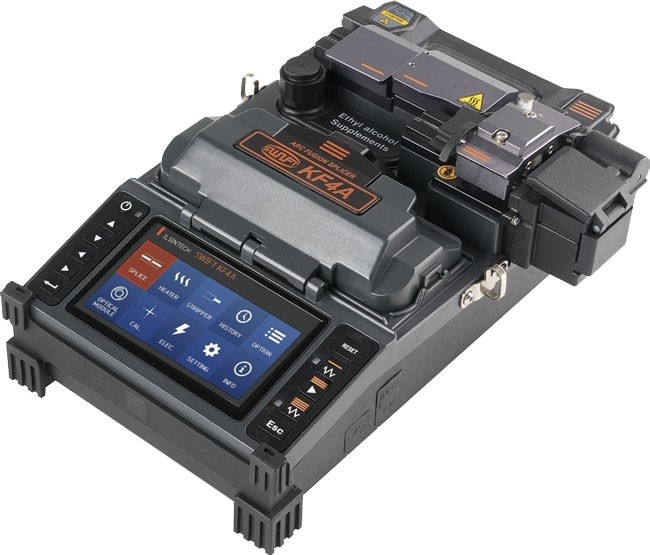

Splicer Ilsintech KF4A Fusion Splicer Fiber Optik Swift Ilsintech KF4A

Category Description
Fiber alignment
IPAAS Active Cladding Alignment

Applicable type of fibers
0.25mm, 0.9mm, 2.0mm, 3.0mm Indoor cable

Fiber count
Single fiber

Applicable fiber dimensions
Cladding diameter: 125μm, Coating diameter: 150μm~3mm

Fiber setting and cleaved length
0.20in to 0.63in

Splicing modes
Splice mode: 300, Heat mode: 100

Typical splice loss
SM: 0.02dB, MM: 0.01dB, DS:0.04dB, NZDS: 0.04dB

Return loss
> 60dB

Splicing time
Typical 7 sec with SM

Sleeve heating time
Typical 13sec with IS-60 mode, IS-60 sleeve

Applicable protection sleeve
2.4in, 1.5in and micro sleeves

Storage of splice result
Data: 5,000ea up to, Image: 5,000ea up to

Tension test
1.96N to 2.25N

Operating condition
Altitude: 0~5,000m above sea level, Temperature: -14°F~122°F, Humidity: 0~95%, Wind: 15m/s, non-condensing, dust proof, water proof, shock proof

Storage condition
Temperature: 40°F~176°F, Humidity: 0~95%

Dimension
132(W) x 212(L) x 73(H)mm (without rubber protector)

Weight
1.5kg (including battery)

Viewing method and display
2 AXIS Two CMOS cameras with 4.3-inch color LCD monitor

Fiber view and magnification
X/Y: 110X , Max: 220X

Power supply
Li-ion Battery(DC 14.8V, 3400mAh), 100 ~ 240V AC charger

No. of splice cycles with battery
Typical 200 cycles

Electrode life
38,000 splices

Blade Life
75,000

Terminals
USB

PACKAGE :
1 Arc Fusion Splicer SWIFT KF4A
1 Battery KF-3400
1 Battery Adapter FY1701000
1 Instructions for use
1 Spare electrode EI-24
1 Transporting Case HC-11(Hard Case)
1 Optical fiber holder
1 Cooling Tray CT-01(1.5in)
1 Allen wrench LD-3300
1 USB Cable
1 Hard Brush
1 Soft Brush
1 Tool Box
1 Tweezer
