Spacer Coupling SRE 190/140 Flex-C Max Bore 60 mm – Panjang 248 mm
Rp0

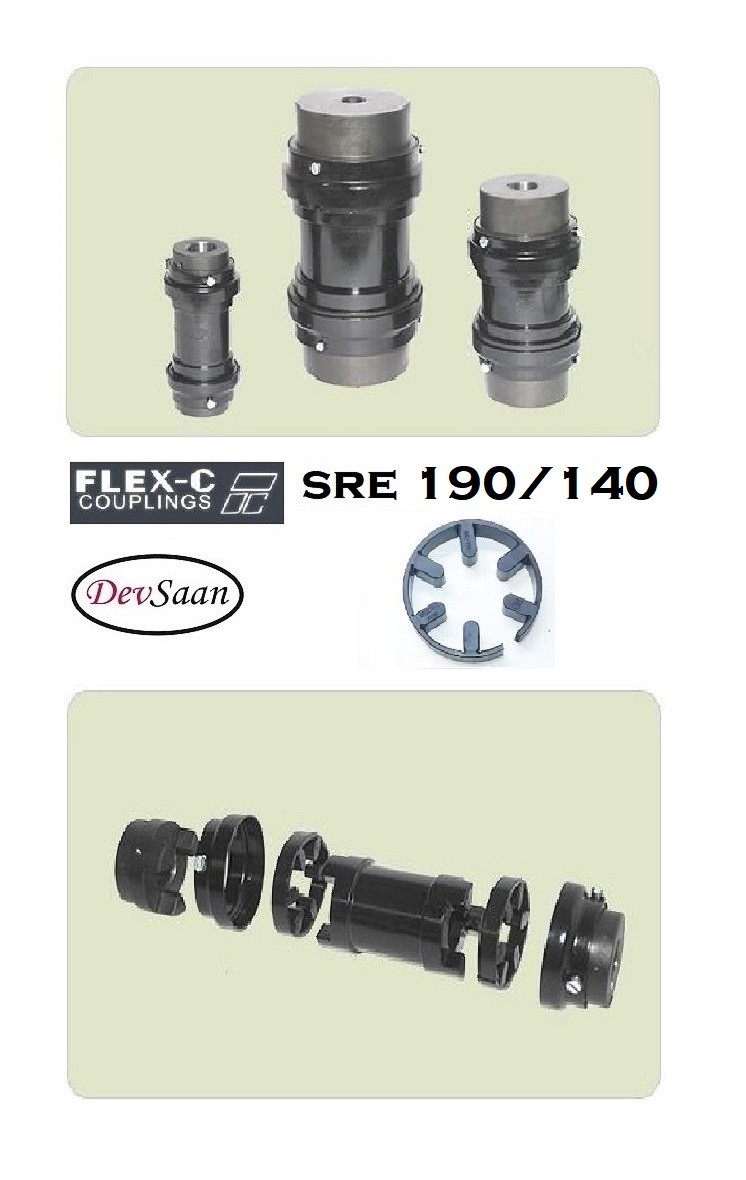

Jual Aluminium Spacer Coupling SRE 190/140 Flex-C Max Bore 60mm
– External Spider / Snap Rubber element fits in the coupling from outside and can be replaced without disturbing the driver & driven unit.
– No downtime for replacement / inspection of rubber element.
– Suitable for back pull out design pumps. Spacer of Aluminum to reduce load on the extended shafts.
– Can take large misalignments because of two flexible membranes.
– Seamless retainer ring provided for proper location & stability of the rubber element.
– Torque range up to 24 kg-m (235.36 n-m)
Jual Aluminium Spacer Coupling SRE 190/140 Flex-C Max Bore 60mm
– External Spider / Snap Rubber element fits in the coupling from outside and can be replaced without disturbing the driver & driven unit.
– No downtime for replacement / inspection of rubber element.
– Suitable for back pull out design pumps. Spacer of Aluminum to reduce load on the extended shafts.
– Can take large misalignments because of two flexible membranes.
– Seamless retainer ring provided for proper location & stability of the rubber element.
– Torque range up to 24 kg-m (235.36 n-m)
Spesifikasi Aluminium Spacer Coupling SRE 190/140 :
| Model | 190/140 |
| Coupling type | Spacer |
| Colour | Black |
| Rated Hp (kW) : @ Speed 1000 Rpm @ Speed 1500 Rpm @ Speed 3000 Rpm |
22 (16,5 kW) 33 (24,75 kW) 66 (49,5 kW) |
| Rated Torque | 15,75 kg-m (153,96 n-m) |
| Pilot bore size | 20 mm |
| Max bore size | 60 mm |
| Jaw diameter | 115 mm |
| Ring diameter | 129 mm |
| Hub diameter | 102 mm |
| Total length | 248 mm |
| Length through bore | 54 mm |
| Gap between Jaw & Body | 3 mm |
Bahan konstruksi Aluminium Spacer Coupling SRE 190/140 :
| Coupling hub | Graded Cast Iron (GG 25) Phospated |
| Spacer | Aluminium (LM4) |
| External Spider / Snap Rubber element | Nitrile Rubber (NBR) |
| Retainer ring | MS |
| Set screw | MS |
Misalignment tolerance :
| Parallel misalignment up to 0.4 mm |
| Angular misalignment up to 1.5 degree |
Anda dapat beli produk tersebut langsung dari importir dan distributor tunggal di Indonesia :
PT. Devsaan Industech, LTC Glodok, Jakarta Barat, DKI Jakarta 11180
Produk tersedia di Tokopedia dan Bukalapak
| Coupling & Rubber Element ready stock di perusahaan kami. |
| Harga sudah termasuk PPN. |
| Harga Franko di LTC Glodok, Jakarta & belum termasuk ongkos kirim. |
| Harga sudah termasuk packing kardus. |
| Hubungi kami di (021) 62308030 / 62308035 atau WAÂ 085719196960Â /Â 081388920119 |
| Ikuti blog kami di www.pumpindo.com |
