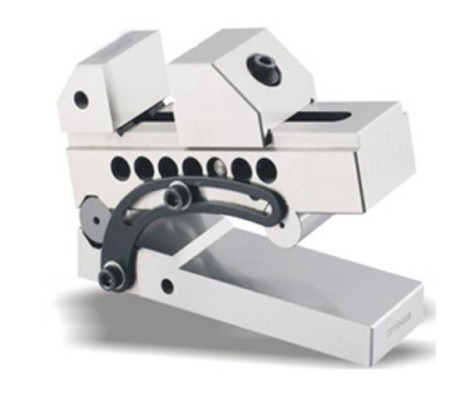

Sine Vise SV25

Merk : LINCO (Taiwan)
Material : SK2
Hardness : HRC56°~58°
Parallelism : 0.005mm/100mm
Squareness : 0.005mm/100mm

* Type SV25

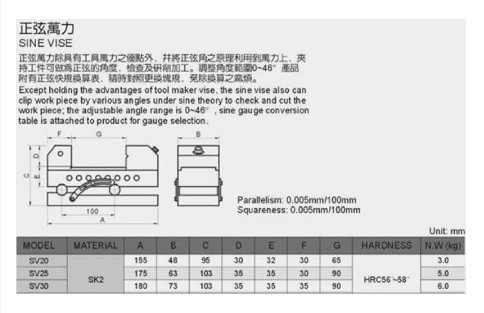

Ukuran > A=175, B=63, C=103, D=35, E=35, F=30, G=90

Except holding the advantages of tool maker vise, the sine vise also can clip work piece by various angles under sine theory to check and cut the work piece; the adjustable angle range is 0-46° , sine gauge conversion table is attached to product for gauge selection.

No more offers for this product!
