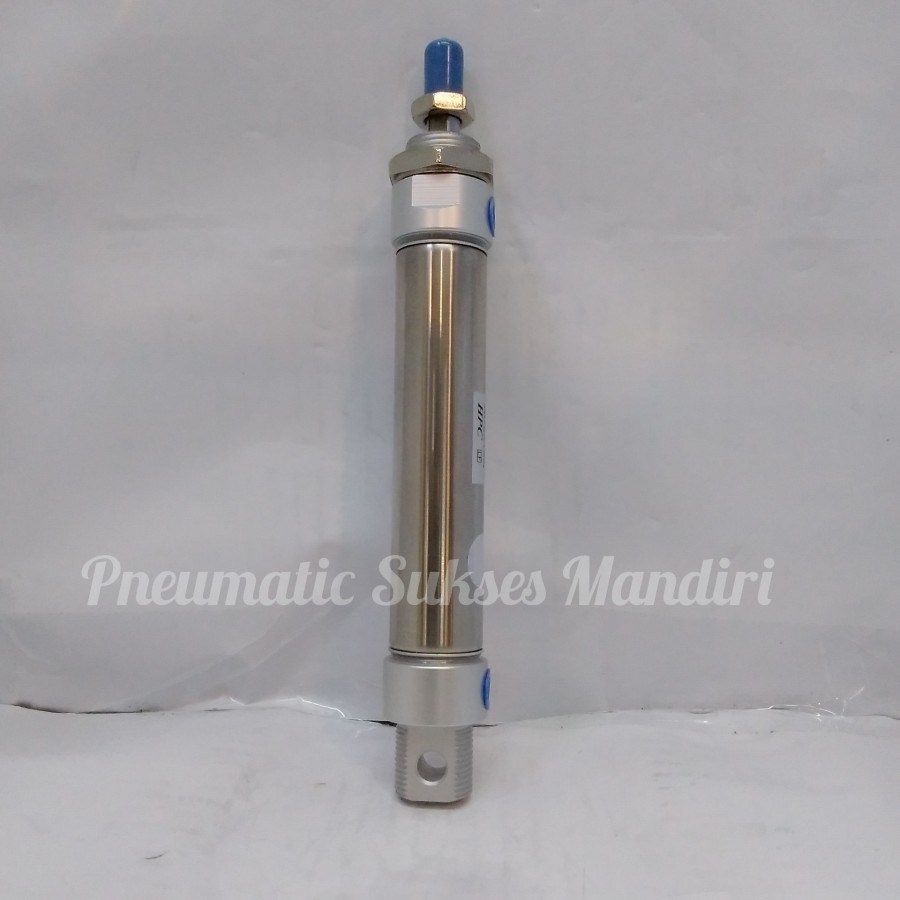

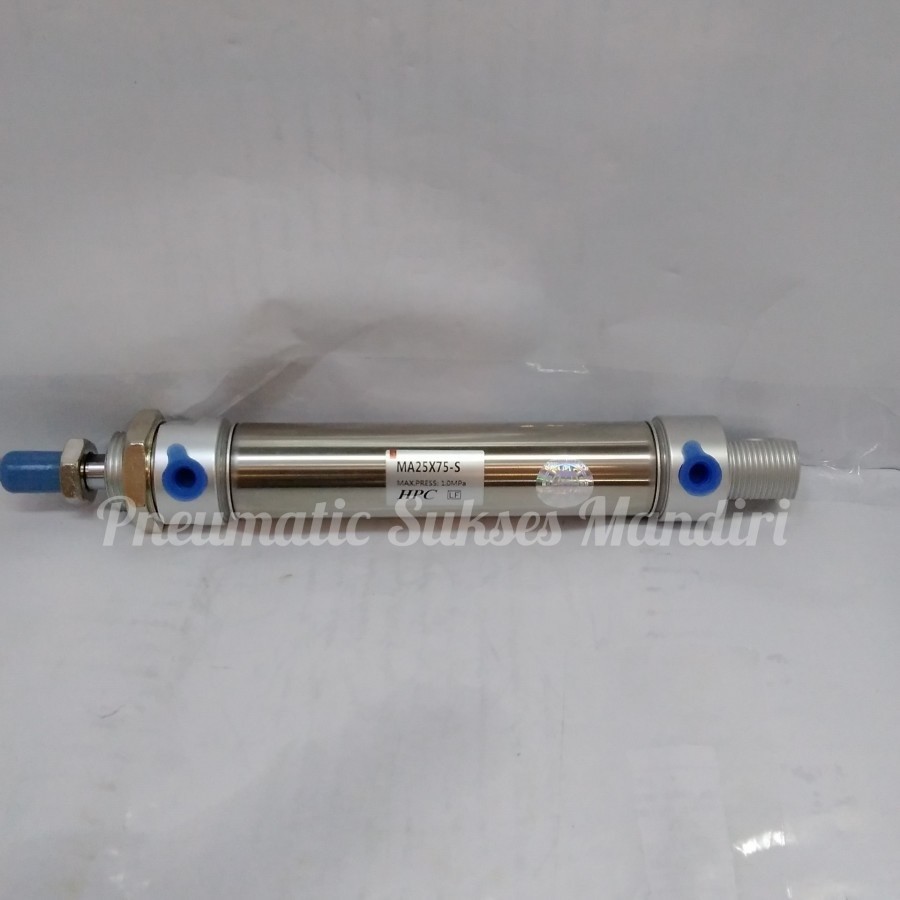

MA/DSNU 25×75 Cylinder Pneumatic Stainless HPC
MA / DSNU 25×75 HPC Air Cylinder Stainless Pneumatic
———————————————————————————————————-
Dimesions Size :
• Diameter Cylinder : 25 mm
• Panjang Stroke : 75 mm
• Port : G 1/8
• Square Cover : 41.6 mm
• Rod Size : 16mm
• Rod Thread : M12x1.25
• Material Body : Stainless Stell Tube ISO6431
• Magnetic Piston : YES
———————————————————————————————————-
• Acting Type : Double Acting
• Working Medium : Air ( udara )
• Working Pressure : 1 ~ 10 Bar
• Ensured Pressure : 1,35Mpa
• Working Temperature : -5 ~ 70°C
• Spreed Range : 50 ~ 800mm/s
• Mounting Type : Foot Mounting
• Mounting Type : LB.FA.SDB.U
