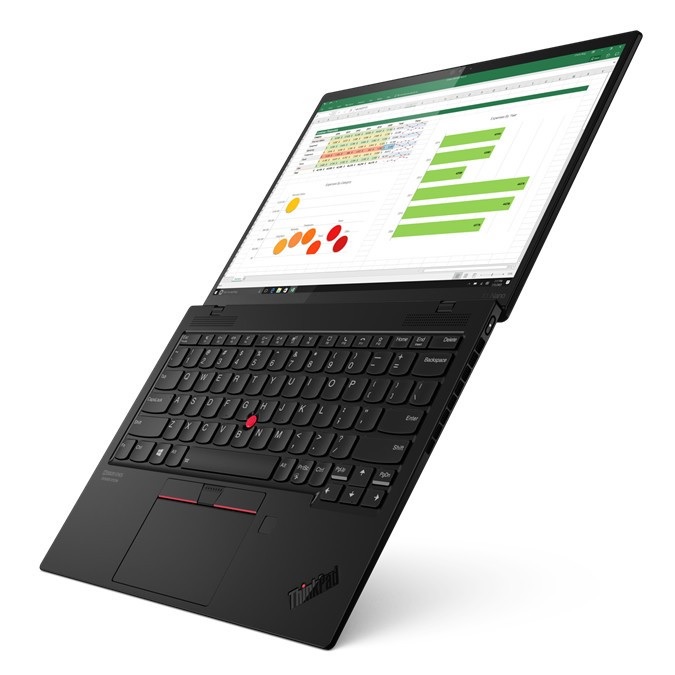

Lenovo Thinkpad X1 Nano-G1-7EID Core i7 / 16GB / 1TB SSD / Win10Pro
ThinkPad X1 Nano Gen 1
Model : 20UN007EID
PERFORMANCE
Processor : Intel Core i7-1180G7 (4C / 8T, 2.2 / 4.6GHz, 12MB)
Graphics : Integrated Intel Iris Xe Graphics
Chipset : Intel SoC Platform
Memory : 16GB Soldered LPDDR4x-4266
Memory Slots : Memory soldered to systemboard, no slots, dual-channel
Max Memory : 16GB soldered memory, not upgradable
Storage : 1TB SSD M.2 2242 PCIe 3.0×4 NVMe
Storage Support : One drive, up to 1TB M.2 2242 SSD
Card Reader : No card reader
Audio Chip : High Definition (HD) Audio, Realtek ALC3306 codec
Speakers : Stereo speakers, 2W x2 woofers and 1W x2 tweeters, Dolby Atmos
Camera : IR & 720p with Privacy Shutter
Microphone : 4x, 360°
Battery : Integrated 48Wh
“Max Battery Life : MobileMark 2018: 13.6 hr
JEITA 2.0: 22.87 hr”
Power Adapter : 65W USB-C Slim (3-pin)
DESIGN
Display : 13″ 2K (2160×1350) IPS 450nits AR (anti-reflection) / AS (anti-smudge), Touch
Touchscreen : 10-point Multi-touch
Keyboard : Backlit, English
Case Color : Black, Weave
Case Material : Carbon Fiber (Top), Magnesium Alloy (Bottom)
“Dimensions (WxDxH) : Touch models|292.9 x 207.8 x 14.27-17.2 mm (11.53 x 8.18 x 0.56-0.68 inches)
Non-touch models|292.8x 207.7 x 13.87-16.7 mm (11.53 x 8.18 x 0.55-0.66 inches)”
Weight : 969 g (2.14 lbs)
SOFTWARE
Operating System : Windows 10 Pro 64, English
CONNECTIVITY
WLAN + Bluetooth : Intel AX201 11ax, 2×2 + BT5.2
“Standard Ports : 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a)
1x Headphone / microphone combo jack (3.5mm)”
Monitor Cable : 1x USB-C to VGA
SECURITY & PRIVACY
Security Chip : Discrete TPM 2.0
Fingerprint Reader : Touch Style, Match-on-Chip
“Other Security : IR camera for Windows Hello
ThinkShutter camera cover”
MANAGEABILITY
System Management : Intel vPro
SERVICE
Base Warranty : 1-year, Depot
Included Upgrade : 3Y Premier Support Upgrade from 1Y Courier/Carry-in (5WS0T36118)
ACCESSORIES
Bundled AccessoriesUSB-C to Ethernet Adapter
