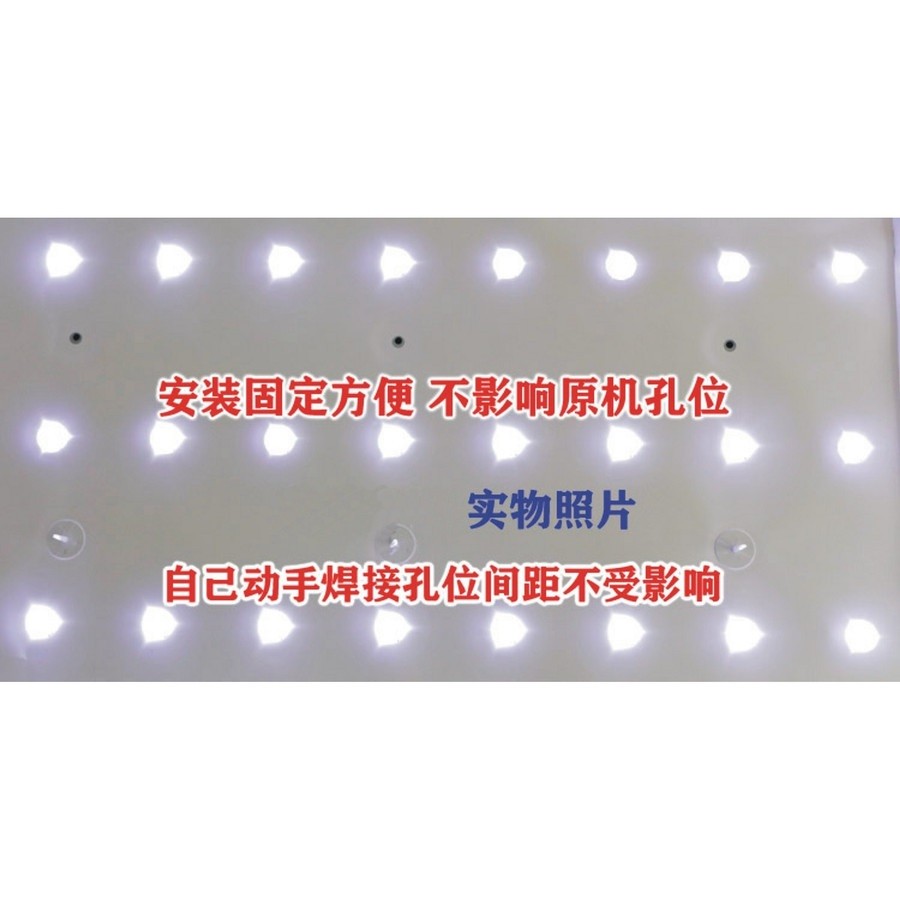

LED Backlight 3535 SMD 6V 2W Putih Cold White TV Back light Lighting

LED Backlight 3535 SMD 6V 2W Putih Cold White Back light Lighting
High Power SMD 3535 2W 6V Cold White Putih LED Diode LCD Back light Lighting Television Backlit Back light LED TV Backlight

SMD LED 3535 6V Cold White 2W For TV LCD Backlight TV Application

MODEL NAME : MSL-635DEQZW-E263H

Manufacturer : Innotek LED

Origin : Taiwan

Package Model:Loaded Quantity : 1900PCS Per Reel

Forward Current (IF ): 500mA

Pulse Forward Curren t1 (IFp): 800mA

Reverse Current (IR): 50mA

Reverse Voltage (VR): V (mA)

Power Dissipation (PD): 2W

Operatin Tgemperature (Topr): -40 – +85 C

Storage Temperature (Tstg): -40 – +100 C

Soldering Temperature (Tsld): Reflow Soldering:260 C
for 10secs

Hand Soldering:350 C

for 3secs

Junctio Tnemperature (Tj ): 162 C

Forward Voltage (VF): 6.0-6.8V (250mA)

Luminous Flux (LM): 150lm (250mA)

Luminous Intensity ( IV ) : cd (250mA)

Wavelength (nm) : -nm mA
CIE : x=0.255 y=0.223 (250mA)

Color Correlated Temperature (CCT):

CRI :

Viewing angle : 120

Lead Frame Type LED Package: 3.53.50.65 mm LWH d=mm

Stok ready, silahkan langsung orders aja .
