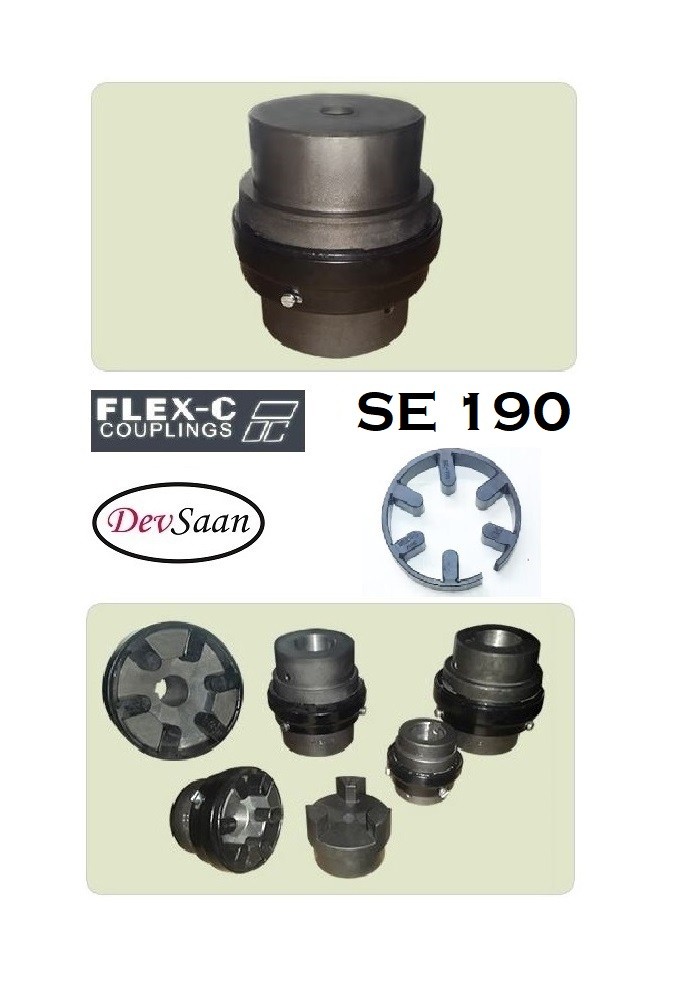

Jaw Coupling SE 190 Flex-C Max Bore 60 mm – Panjang 133 mm

Rp0

Rincian Produk
Model: SE 190
Merek: Flex-C
Kondisi: Baru
Berat bersih: 7,65 Kg.
SKU : JCSE190XXXXX

Jual Jaw Coupling SE 190 Flex-C Max Bore 60mm

– External Spider / Snap Rubber element fits in the coupling from outside and can be replaced without disturbing the driver & driven unit.

– No downtime for replacement / inspection of rubber element.

– Seamless retainer ring provided for proper location & stability of the rubber element.

– Torque range up to 24 kg-m (235.36 n-m)

Rincian Produk
Model: SE 190
Merek: Flex-C
Kondisi: Baru
Berat bersih: 7,65 Kg.
SKU : JCSE190XXXXX

Jual Jaw Coupling SE 190 Flex-C Max Bore 60mm

– External Spider / Snap Rubber element fits in the coupling from outside and can be replaced without disturbing the driver & driven unit.

– No downtime for replacement / inspection of rubber element.

– Seamless retainer ring provided for proper location & stability of the rubber element.

– Torque range up to 24 kg-m (235.36 n-m)

Spesifikasi Jaw Coupling SE 190 :

Model 190
Coupling type Jaw Flex
Colour Black
Rated Hp (kW) :
@ Speed 1000 Rpm
@ Speed 1500 Rpm
@ Speed 3000 Rpm
22 (16,5 kW)
33 (24,75 kW)
66 (49,5 kW)
Rated Torque 15,75 kg-m (153,96 n-m)
Pilot bore size 20 mm
Max bore size 60 mm
Jaw diameter 115 mm
Ring diameter 129 mm
Hub diameter 102 mm
Total length 133 mm
Length through bore 54 mm
Gap between Jaw & Body 3 mm
Distance between shafts 25 mm


Bahan konstruksi Jaw Coupling SE 190 :

Coupling hub Graded Cast Iron (GG 25) Phospated
External Spider / Snap Rubber element Nitrile Rubber (NBR)
Retainer ring MS
Set screw MS


Misalignment tolerance :

Parallel misalignment up to 0.4 mm
Angular misalignment up to 1.5 degree


Anda dapat beli produk tersebut langsung dari importir dan distributor tunggal di Indonesia :

PT. Devsaan Industech, LTC Glodok, Jakarta Barat, DKI Jakarta 11180

Produk tersedia di Tokopedia dan Bukalapak

Coupling & Rubber Element ready stock di perusahaan kami.
Harga sudah termasuk PPN.
Harga Franko di LTC Glodok, Jakarta & belum termasuk ongkos kirim.
Harga sudah termasuk packing kardus.
Hubungi kami di (021) 62308030 / 62308035 atau WA 085719196960 / 081388920119
Ikuti blog kami di www.pumpindo.com
