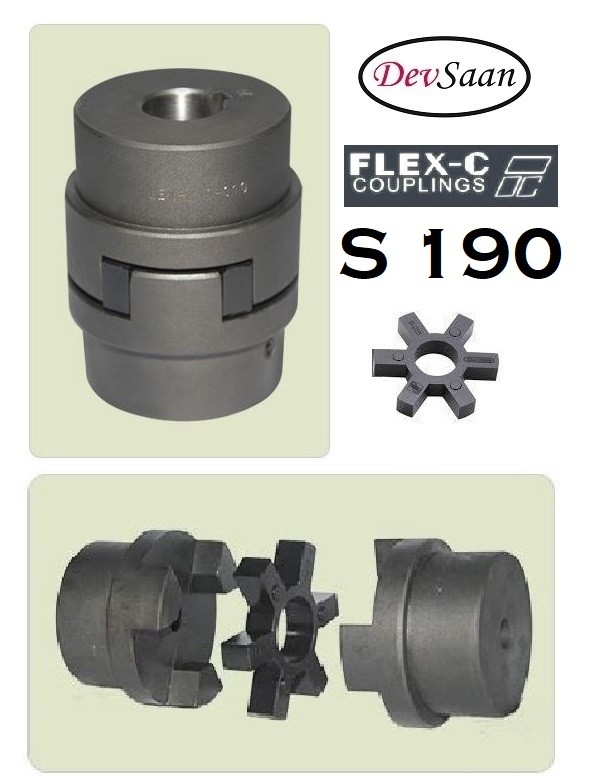

Jaw Coupling S 190 Flex-C Max Bore 60 mm – 133 mm
Rp0
Rincian Produk
Model:Â S 190
Merek:Â Flex-C
Kondisi:Â Baru
Berat bersih:Â 7,45 Kg.
SKU : JCS190XXXXXX
Jual Jaw Coupling S 190 Flex-C Max Bore 60mm
– Standard Star / Spider Coupling
– Low weight to high torque ratio
– Easy for alignment of equipment
– Torque range up to 24 kg-m (235.36 n-m)
Rincian Produk
Model:Â S 190
Merek:Â Flex-C
Kondisi:Â Baru
Berat bersih:Â 7,45 Kg.
SKU : JCS190XXXXXX
Jual Jaw Coupling S 190 Flex-C Max Bore 60mm
– Standard Star / Spider Coupling
– Low weight to high torque ratio
– Easy for alignment of equipment
– Torque range up to 24 kg-m (235.36 n-m)
Spesifikasi Jaw Coupling S 190 :
| Model | 190 |
| Coupling type | Jaw Flex |
| Colour | Black |
| Rated Hp (kW) : @ Speed 1000 Rpm @ Speed 1500 Rpm @ Speed 3000 Rpm |
22 (16,5 kW) 33 (24,75 kW) 66 (49,5 kW) |
| Rated Torque | 15,75 kg-m (153,96 n-m) |
| Pilot bore size | 20 mm |
| Max bore size | 60 mm |
| Jaw diameter | 115 mm |
| Hub diameter | 102 mm |
| Total length | 133 mm |
| Length through bore | 54 mm |
| Gap between Jaw & Body | 3 mm |
| Distance between shafts | 25 mm |
Bahan konstruksi Jaw Coupling S 190 :
| Coupling hub | Graded Cast Iron (GG 25) Phospated |
| Star / Spider Rubber Element | Nitrile Rubber (NBR) |
Misalignment tolerance :
| Parallel misalignment up to 0.4 mm |
| Angular misalignment up to 1.5 degree |
Anda dapat beli produk tersebut langsung dari importir dan distributor tunggal di Indonesia :
PT. Devsaan Industech, LTC Glodok, Jakarta Barat, DKI Jakarta 11180
Produk tersedia di Tokopedia dan Bukalapak
| Coupling & Rubber Element ready stock di perusahaan kami. |
| Harga sudah termasuk PPN. |
| Harga Franko di LTC Glodok, Jakarta & belum termasuk ongkos kirim. |
| Harga sudah termasuk packing kardus. |
| Hubungi kami di (021) 62308030 / 62308035 atau WAÂ 085719196960Â /Â 081388920119 |
| Ikuti blog kami di www.pumpindo.com |
