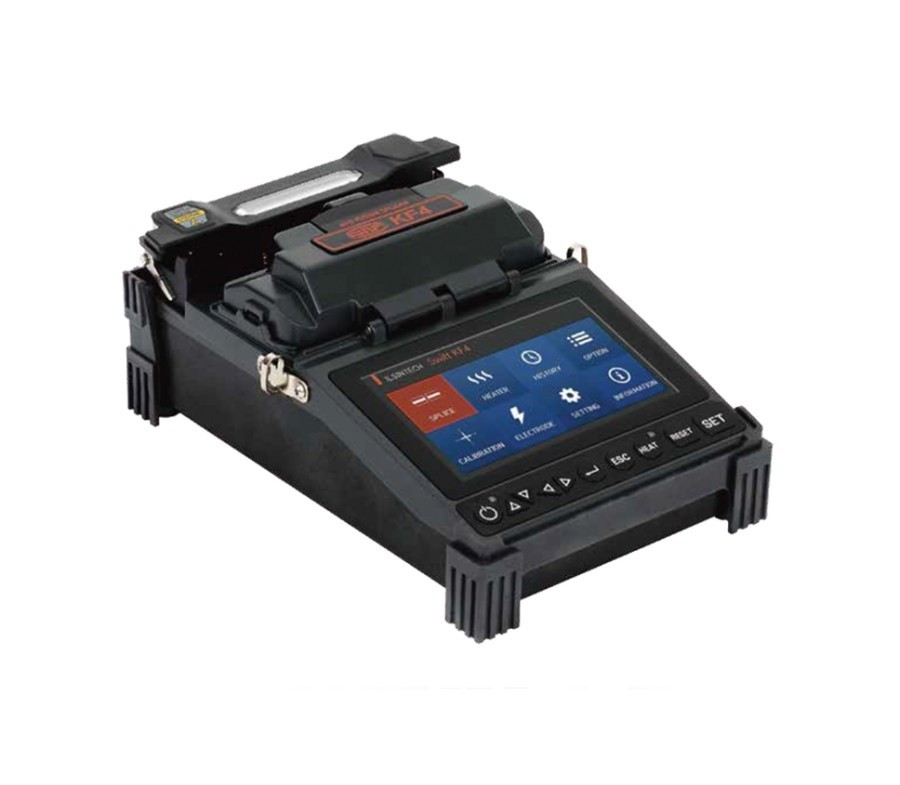

Fusion Splicer Swift Ilsintech Type KF4 Fiber Optic Splicer

Description
Fiber alignment
IPAAS, Active V-Groove Alignment

Applicable type of fibers
0.25mm, 0.9mm, 2.0mm, 3.0mm Indoor cable

Fiber count
Single fiber

Applicable fiber dimensions
Cladding diameter: 125μm, Coating diameter: 150μm~3mm

Fiber setting and cleaved length
0.20in to 0.63in

Splicing modes
Splice mode: 300, Heat mode: 100

Typical splice Loss
SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB

Return loss
> 60dB

Splicing time
Typical 7sec with SM

Sleeve heating time
Typical 13sec with IS-60 mode, IS-60 sleeve

Applicable protection sleeve

2.4in, 1.5in and micro sleeves

Storage of splice result

Data: 5,000ea up to, Image: 5,000ea up to

Tension test

1.96N to 2.25N

Operating condition

Altitude: 0~5,000m above sea level, Temperature: -14°F~122°F, Humidity: 0~95%, Wind: 15m/s, non-condensing, dust proof, water proof, shock proof

Storage condition

Temperature: 40°F~176°F, Humidity: 0~95%

Dimension

4.9(W) x 7.4(L) x 3.0(H)in (without rubber protector)

Weight

5.3lb (including battery)

Viewing method and display

2 AXIS Two CMOS cameras with 4.3-inch color LCD monitor

Fiber view and magnification

X/Y: 130X , Max: 260X

Power supply

Li-ion Battery(DC 14.8V, 3400mAh), 100 ~ 240V AC charger

No. of splice cycles with battery

Typical 200 cycles

Electrode life

38,000 splices

Blade life

75,000

Terminals

USB

PACKAGE :
1 Arc Fusion Splicer SWIFT KF4
1 Battery Adapter KF-3400
1 Instructions for use FY1701000
1 Spare electrode EI-24
1 Transporting Case
1 Hard Case
1 Cooling Tray CT-01(1.5in)
1 Screwdriver LD-3300
1 USB Cable
1 Cleaver CS-01BT
1 Manual Stripper CF-02
1 Alcohol Dispenser PP
