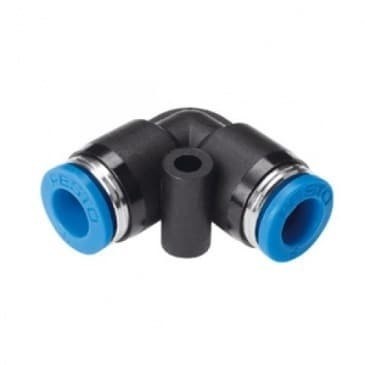

FESTO PUSH-IN L-FITTING (QSL-16)

FESTO PUSH-IN L-FITTING (QSL-16)
Part number: 153075

Size Standard
Nominal size 10.8 mm
Assembly position Any
Container size 1
Design structure Push/pull principle
Operating pressure complete temperature range -0.95 … 6 bar
Temperature dependent operating pressure -0.95 … 14 bar
Maritime classification see certificate
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Water as per manufacturer’s declaration at www.festo.com
Note on operating and pilot medium Lubricated operation possible
Corrosion resistance classification CRC 1 – Low corrosion stress
Ambient temperature -10 … 80 °C
Product weight 31 g
Pneumatic connection, port 1 For tubing outside diameter 16 mm
Pneumatic connection, port 2 For tubing outside diameter 16 mm
Colour of release ring blue
Materials note Conforms to RoHS
Material housing PBT
Material release ring POM
Material of tubing seal NBR
Material of tube retaining claw High alloy steel, non-corrosive
