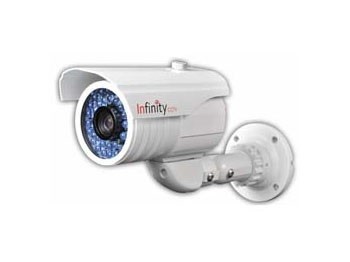

DS-382V / DS-582V Outdoor IR

Key Features :
– 1/3″ Sony Image CCD Sensor
– 36 IR Led”s, Night Vision up to 30 Meters
– Moderate Resolution
– Manual Varifocal Lens 4-9mm
– All-oriented bracket with cable conceal inside
– Water proof IP 66 Standard
– CCD sensor High sensitivity

SPECIFICATIONS :

Model No :
DS-382V / DS-582V

Image Sensor :
1/3 ” SONY CCD 1/3 ” SONY SuperHad CCD

Resolution :
420TVL / 540TVL

Pixels :
PAL:752(Horz)×582(Vert), On
NTSC:768(Horz)×494(Vert)

TV system :
NTSC/PAL

LED :
36 Pcs

IR Series Dist :
30 Metres

Min Illumination :
0.01 Lux

Weatherproof :
IP 66

Sync System :
Internal Synchronization

Usable Illumination :
0,01 Lux (Infrared Turn On )

Lens :
4-9mm Manual Varifocal

S/N Ratio :
>48dB (AGC Off)

Electronic Shutter :
1/50~1/100,000 sec.

Video out :
Composite output 1.0V p-p at 75 ohm

Gamma Correction :
0.45

White Balance :
AUTO

Size(mm) :
256*85*143mm

Weight(g) :
900g

Working Temp :
-10? To 50?

Power Supply :
DC12V±10%
