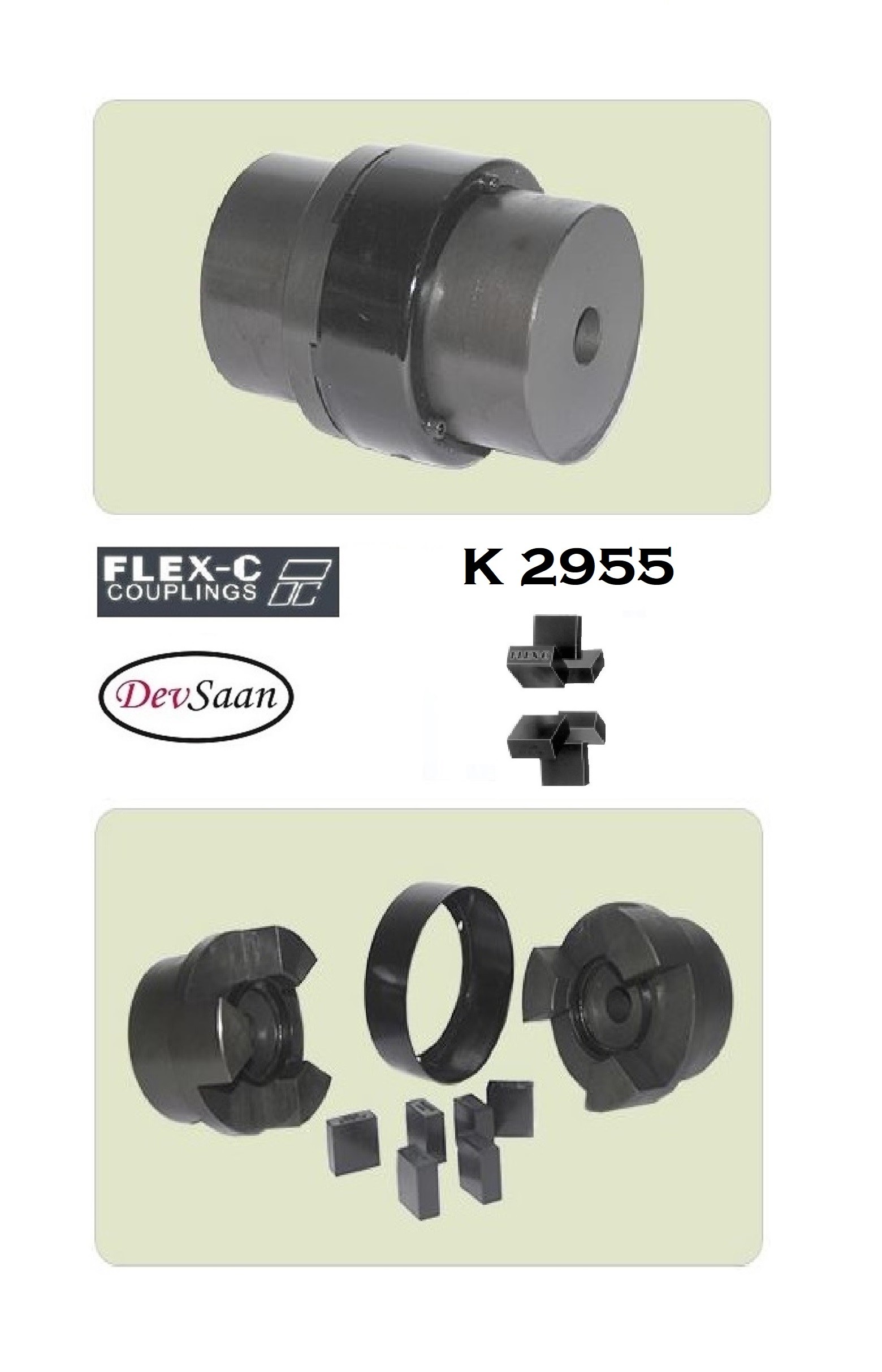

Cushion Pad Coupling K 2955 Flex-C Max Bore 100 mm – Panjang 264 mm
Rp0
Jual Cushion Pad Coupling K 2955 Flex-C Max Bore 100mm
– Cushion Pad Coupling available with cushion pads instead of star / spider rubber, which facilitates easy removal of rubber elements without disturbing the equipment.
– Seamless retainer rings provided on inside and outside diameter of coupling to support the pads.
– Pads can be inspected easily from time to time.
– Torque range up to 215 kg-m (2108,43 n-m)
Jual Cushion Pad Coupling K 2955 Flex-C Max Bore 100mm
– Cushion Pad Coupling available with cushion pads instead of star / spider rubber, which facilitates easy removal of rubber elements without disturbing the equipment.
– Seamless retainer rings provided on inside and outside diameter of coupling to support the pads.
– Pads can be inspected easily from time to time.
– Torque range up to 215 kg-m (2108,43 n-m)
Spesifikasi Cushion Pad Coupling K 2955 :
| Model | 2955 |
| Coupling type | Cushion Pad |
| Colour | Black |
| Rated Hp (kW) : @ Speed 1000 Rpm @ Speed 1500 Rpm @ Speed 3000 Rpm |
300 (225 kW) 450 (337,5 kW) 900 (675 kW) |
| Rated Torque | 214,80 kg-m (2106,47 n-m) |
| Pilot bore size | 30 mm |
| Max bore size | 100 mm |
| Jaw diameter | 237 mm |
| Ring diameter | 242 mm |
| Hub diameter | 180 mm |
| Total length | 264 mm |
| Length through bore | 108 mm |
| Gap between Jaw & Body | 3 mm |
| Distance between shafts | 48 mm |
Bahan konstruksi Cushion Pad Coupling K 2955 :
| Coupling hub | Graded Cast Iron (GG 25) |
| Cushion Pads | Nitrile Rubber (NBR) |
| O.D.Ring | M.S. |
| I.D.Ring | M.S. |
| Set Screw | M.S. |
Misalignment tolerance :
| Parallel misalignment up to 0.4 mm |
| Angular misalignment up to 1.5 degree |
Anda dapat beli produk tersebut langsung dari importir dan distributor tunggal di Indonesia :
PT. Devsaan Industech, LTC Glodok, Jakarta Barat, DKI Jakarta 11180
Produk tersedia di Tokopedia dan Bukalapak
| Coupling & Rubber Element ready stock di perusahaan kami. |
| Harga sudah termasuk PPN. |
| Harga Franko di LTC Glodok, Jakarta & belum termasuk ongkos kirim. |
| Harga sudah termasuk packing. |
| Hubungi kami di (021) 62308030 / 62308035 atau WAÂ 085719196960Â /Â 081388920119 |
| Ikuti blog kami di www.pumpindo.com |
