Showing all 10 results
-
- True Vertical Lift Hoist, reeving 2/2, cocok untuk cargo lift atau lift barang.
- Jual di bawah modal, Kondisi 100% baruÂ
- Garansi service 1 tahun
-

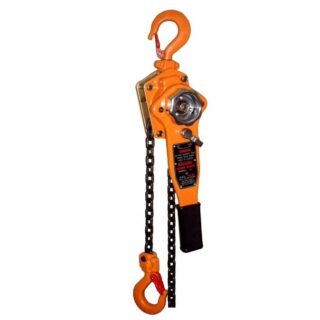

Rachet lever hoist feature compact design and robust, deep drawn, stamped steel construction, high quality material ensure light weigh without infringing reliability.
1. Low own weight, small mounting sizes and small lever force at full load
2. Asbestos free brake, holding load at any desired height.
3. Top & battom hooks are fitted with safety latches as standard.
4. The load chain can be pulled freely and easily throught the hoist in both direction to attach the load or tension the chain. For safety reason free chains can not be done when the hoist is under load.
5. Short hand lever with ribber grip.
6. Hand lever operates with little effort due optimal gear ratio.
7. Drop forged steel suspension & load hooks are heat treated and fracture resistant, incase of dangerous overloading of abuse, the hook does not fracture but will slowly yield.
8. The hoist is fitted with high grade alloy load chain.
-
* Designed to function on both flat and minor irregular beams – I beam and H beamÂ
*Â Easy installation and on site operations
*Â High quality bearingÂ
*Â Robust steel plateÂ
special width beam can be order
-
Pawell Cable Puller features:
- It has a light weight, compact, high strength aluminium alloy housing (TS model is stamped steel housing), with a large flat bottom surface for increased stability in horizontal as well as vertical working position.
- Forward and reversing levers in tandem provide slim design and assure power transfer along the centre line.
- Overload protection is by a shearing pin in the forward lever. Spare shear pins are conveniently located in the carrying handle or operating lever.
- A broken pin can be replaced without removing the load
- A lever disengages the rope clamp system allowing easy, smooth installation of the wire rope.
- The rope is tapered at one end for easy threading and fitted with an eye sling hook with safety latch on the other end.
- The parallel arrangement of the clamping system protects the wire rope by distributing the clamping forces evenly.
- A long rope advance per each lever stroke increases the working speed
-
HPB Model Hand Pulley BlockÂ
- Single steel sheaveÂ
- Capacity 500-6400 kgÂ
- Easy opened and quick positioningÂ
- Swinging the hook in the direction of pull securelyÂ
- lock the pulley block
- High quality Casy steel sheavesÂ
- DIN 15020Â
Rollet SkatesÂ
- Capacity 6-18 TonÂ
- Skate with turnable with bearingÂ
- And Heavy Duty
-
All Type Lifting Clamp:
- Vertical ClampÂ
- Horizontal ClampÂ
- Drum ClampÂ
- Pipe Clamp
- Tube Clamp
By PAWELL Machinery USAÂ
-
Pawell Magnet Clamp
- Capacity 100-6000kgÂ
- Ideal easy tools , quick and economicalÂ
- Compact designÂ
- Allows lifting flat as well as round material
- Easy operation
- StrongÂ
-
- Genuine Authentic original
- Kualitas: Tinggi Kuat & kokoh
- Sistem keamanan tinggi
- Programable Dapat diprogram
- Garansi 1 tahun pabrik + 3 tahun jasa
————————————————
- F24-60 Transmitter
- Double 5 steps Joy stick with 6 single step buttons & 4selector switchÂ
- Size:220x110x90 mm
- Weight Apporox 860g [without batteries]
- F24-60 ReceiverÂ
- Size 290x230x70 mmÂ
- Weight 2200g [without wire cable]
- Receiver Power Supply 24/48/110/220/380 VAC
Features
- Â Durable nylon-fiber housing for extra shock resistance..Â
- Â Fully programmable relay configuration with maximum 16 relays output per command.
- Â Operating range up to 100 meters
- Â Pre-wiring standard cable making installation quick and easy.
- Â Economic efficiency, ease of operation.
- Â 3 stages LED battery power indicator.
- Â Feature acceleration delay time control (smooth moving for multiple speeds cranes)
Safety features:Â
- ¡¸ 4.3 billion unique ID code ¡¸ Hamming code ¡¸ enhanced watch-dog circuit
- General Specification
- Operating Temp.-35oC ~ +80oC
- Maximum Range100 M
- TX power supply4 AA size Alkaline batteries
- RX power supply24/48/110/220/380 V
- Protection classIP 65 Industrial standard
- ID Code4.3 billion (32 bit)
- Hamming code distance> 4
- TX Dimension & Weight220x110x90 mm Apprx. 860g (w/o batteries)
- RX Dimension & Weight290x230x70mm Apprx.2200g (w/o cable)Â
-
- Genuine Authentic & original
- Sistem keamanan tinggi
- Programmable Dapat diprogram
- Kualitas tinggi
- Kuat & kokoh
- Garansi 1 tahun pabrik + 3 tahun jasa

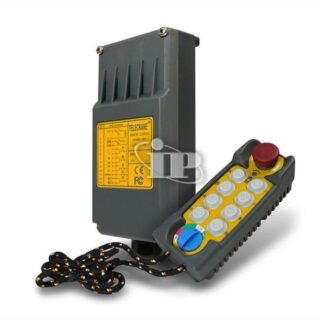

Transmitter
- Â Dimension: 132 x 55 x 40 mm
- Â Weight: 220g (including batteries)
Receiver
- Â Dimension: 190 x 85 x 62 mm
- Â Weight: 950 g (including cable)
- Â Receiver Power Supply: 24/48, 48/110, 48/220, 110/220, Â 220/380 VAC (50/60 Hz), 12-24 VDC
Function Setting Software
- Â Â To meet variety application requirements, F21-E2 software
- Â Â provides multi-function setting such as pushbutton in Normal
- Â Â (Momentary), Toggle, Magnetic, ON/OFF, and Interlock/Non-
- Â Â interlock modes.
Features
- Â Â Transmitter pushbutton: 1 EMS button / 1 Rotary Key Switch
- Â Â 8 single step button (UP/DOWN buttons are programmable as
- Â Â double speed through software)
- Â Transmitter power supply: Two 1.5 volts (AA Size) alkaline /Â rechargeable batteries
- Â Over 4.3 billions unique ID code available (never repeated)
-  Operating temperature range -40°C to +85°C
- Â CRC & Hamming Technology: enhanced encoding/decoding.
- Â Internal antenna for both transmitter & receiver
- Â PLL Circuit: multi-channel selection, interference free.
- Â Ergonomic transmitter: compact & handy.
- Â Programmable: Computer software programmable.
- Â A single step pushbutton works as double step pushbutton.
Special characteristic: e-Card design
-  • USB interference.
-  • Plug & Play, just like SIM card..
-  • e-Card duplicate via transmitter.
-
- Barang 100% BaruÂ
- Jual dibawah modalÂ
- low head room hoistÂ
- komplit trolley , Full Double speed HoistÂ
